Water has a talent for finding the tiniest gaps and turning them into big problems. Whether you’re building a basement that stays dry, a bridge that resists freeze-thaw cycles, or a rooftop deck that won’t leak, choosing the right method to waterproof concrete matters. This article walks through the two broad strategies—treating the concrete itself and applying protection to its surface—so you can match the right technique to the job and avoid costly surprises later.

What “waterproofing” really means for concrete

Concrete is not inherently waterproof. It’s a network of capillaries and microcracks that lets water move through by capillary suction, diffusion, and pressure-driven flow. Waterproofing, then, is any strategy intended to interrupt those pathways—by reducing permeability inside the matrix, or by creating an external barrier that sheds or resists water.

In practical terms, the goal can vary: prevent liquid water transmission, limit vapor movement, or stop deleterious materials like chlorides from reaching reinforcing steel. Each objective changes the choice of materials and installation details. Understanding the failure modes you’re trying to avoid makes specification and execution much more effective.

Why waterproofing concrete matters

Left unchecked, moisture causes a cascade of problems: corrosion of embedded steel, alkali-silica reactions, freeze-thaw damage, efflorescence, and indoor air quality issues in occupied spaces. These effects shorten service life and raise maintenance costs dramatically over time. Simple cracks and dampness that feel cosmetic today can become structural liabilities tomorrow.

Beyond durability, waterproofing affects usability and occupant comfort. A dry basement retains value in the real estate market. A rooftop terrace that keeps furniture and finishes dry extends the lifespan of those components. The right waterproofing approach protects both structure and use.

Two broad strategies: integral versus surface-applied systems

Broadly speaking there are two families of solutions: make the concrete itself less permeable (integral methods), or apply a protective layer onto the concrete (surface-applied methods). Many projects combine both for redundancy, but each approach carries distinctive strengths, limits, and cost profiles.

Integral methods work during mixing and curing to alter the concrete’s pore structure or chemistry. Surface-applied methods are installed after the concrete is set and form a membrane or coating to block water. Understanding how each behaves under UV exposure, movement, and loads helps you choose the right system for basements, slabs, tunnels, decks or vertical walls.

Integral waterproofing: how it works

Integral waterproofing involves admixtures or treatments added to the concrete mix that reduce permeability or react within the microstructure. These can be hydrophobic agents, crystalline-forming chemicals, or fine fillers that block capillaries. The benefit is durability that follows the concrete’s profile rather than sitting on its surface.

Because integral methods become part of the matrix, they’re effective at limiting water ingress through pores and hairline cracks that are too small for surface membranes to bridge. They also avoid issues of delamination and mechanical damage associated with surface coatings, but they are not a universal cure — design and placement remain critical.

Common types of integral admixtures

There are several categories of integral admixtures. Hydrophobic pore blockers coat capillary walls to reduce water absorption. Crystalline admixtures react with cement hydration products and water to form insoluble crystals that block voids. Microfine silica and pozzolanic powders densify the paste and refine the pore structure, physically limiting permeability.

Selecting between them depends on exposure severity, intended service life, and compatibility with other mix constituents. Some crystalline systems are marketed as both integral and surface treatments; when used as admixtures they form crystals throughout the paste, while surface-applied crystalline products act more like a penetrating sealer.

How admixtures affect mixing and curing

Integral waterproofing admixtures alter rheology and sometimes set times. Hydrophobic agents can improve workability but may require adjustments in water content or plasticizers. Crystalline and pozzolanic materials can accelerate or decelerate early strength gain; consult manufacturer data and trial mixes to tune the mix design.

Curing remains essential. Even the best admixture won’t compensate for poor curing practices. Proper moisture retention during the early strength development ensures the chemical reactions needed for crystal formation and dense hydration products occur uniformly across the element.

Advantages and limitations of integral methods

Integral treatments offer long-term protection at little or no change to the concrete’s exterior appearance. They resist damage from mechanical wear because protection is part of the matrix. For cast-in-place structures and precast elements alike, integral methods are efficient for reducing permeability throughout the section.

That said, integral methods have limits. They are less effective against active leaks through larger cracks or poor construction joints and provide minimal protection against hydrostatic pressure if the concrete itself is structurally inadequate. Surface detailing and joint systems remain necessary for most structures.

Surface-applied waterproofing: the basics

Surface-applied waterproofing consists of membranes, coatings, or sealers placed on the outside (or occasionally the inside) of hardened concrete. These products create a barrier to liquid water and can be tailored for flexibility, durability, and appearance. They’re widely used where retrofitting is required or where integral methods alone won’t address joints and penetrations.

Surface systems range from sheet membranes to fluid-applied elastomers and cementitious coatings. The choice depends on substrate condition, expected movement, exposure, and whether the membrane will be covered by paving, soil, or exposed to sunlight and weather.

Types of surface-applied systems

Liquid-applied membranes (polyurethane, acrylic, polymer-modified cements) cure to form continuous sheets that conform to substrates and details. Sheet membranes (bituminous or thermoplastic) provide thicker, factory-controlled layers. Cementitious systems are popular for interior wet areas and are often used with reinforcement fabric or as part of a crack-isolation strategy.

Each type has specific tolerances for movement, UV exposure, and substrate moisture content. Liquid membranes can handle complex shapes and details more easily, while sheets can offer robust puncture resistance when protected.

Substrate preparation and application considerations

Good surface waterproofing begins with good substrate prep. The surface must be clean, stable, and free of laitance, oils, and curing compounds that prevent adhesion. Cracks and voids should be repaired or addressed with compatible elastomeric sealers or reinforcement before the membrane is installed.

Manufacturer instructions on priming, ambient and substrate temperatures, and humidity limits are not suggestions—they determine long-term performance. Improper application or poor substrate cleaning is the leading cause of membrane failure, so spending time on prep repays itself quickly.

Advantages and limitations of surface-applied membranes

Surface membranes excel at creating a visible line of defense and are ideal where you need an impermeable layer on the structure’s exterior. They make leaks easier to locate and repair, and many systems are tested and rated for specific hydrostatic pressures. For retrofit projects, they’re often the only practical choice.

However, surface membranes are vulnerable to mechanical damage, UV degradation, and poor adhesion over time. They require protection where exposed to traffic or landscaping and must be detailed carefully at joints and penetrations to avoid water migration underneath the membrane.

Comparing integral and surface-applied approaches

Choosing between integral and surface-applied methods is not an either/or decision in many projects. Often the best strategy uses both—integral treatments for durability and surface membranes for joints, terminations, and concentrated penetration areas. Understanding how they complement each other simplifies specification and risk management.

Below is a concise comparison to highlight typical performance differences and practical considerations when selecting systems for specific exposures.

How to choose the right system

Start with the exposure and performance requirements. Subterranean structures under constant hydrostatic pressure need different solutions than rooftop decks exposed to UV. Ask whether the goal is to stop bulk water, reduce vapor transmission, or prevent chloride ingress to reinforcement.

Next, consider constructability and access. New construction allows integral admixtures and factory-applied surface systems. Renovation projects often demand surface-applied membranes because you’re working with existing concrete. Finally, factor lifecycle cost: an initially cheaper membrane might cost more in maintenance over decades than a marginally more expensive integral system combined with spot surface protection.

Key decision factors

Useful criteria include hydrostatic pressure, movement/joint frequency, traffic load, UV exposure, and aesthetic requirements. Workability during construction and compatibility with finishes (tiles, pavers, coatings) also play a role. Consider warranties, third-party testing, and the contractor’s familiarity with the chosen system.

Specifications should describe not only product selection but also substrate prep, mock-ups, acceptance tests, and quality control during installation. These items reduce ambiguity and prevent the “installed but nonperforming” scenario that causes disputes later.

Detailing: joints, penetrations and transitions

Most leaks occur at transitions, terminations, penetrations, and construction joints, not through the middle of a monolithic wall. Regardless of the waterproofing family you choose, detailing these areas correctly is essential. Good membranes alone won’t accomplish a watertight structure without attention to the details where movement concentrates.

For integral systems, treat joints and penetrations with mechanical waterstops, compressible inserts, or specially designed injection grouts. For surface systems, use bond breakers, fabric reinforcements, and correctly sized sealants compatible with the membrane. Flashing and termination bars should be mechanically fastened and sealed against the membrane to resist capillary wicking.

Practical detailing tips

Attach drains and scuppers to the waterproofing layer with clamping rings or flanged connectors specified by the membrane manufacturer. Where membranes meet dissimilar materials, use flexible transition sheets or tapered fillets to reduce stress concentrations. Avoid end-of-day shortcutting—terminations must be continuous and tied into adjacent materials.

Consider redundancy for critical details. A double seal at wall-to-slab transitions—integral admixture in the concrete, plus a surface membrane extending over the joint—often prevents problematic leaks in basements and tunnels.

Durability, inspection and testing

Design life expectations shape the specification. Many membranes come with 10–25 year warranties, while integral admixtures effectively last as long as the concrete does if curing and placement were correct. Regular inspection after installation helps catch minor failures before they escalate.

Common tests include water ponding (for decks), flood testing, pull-off adhesion tests, and non-destructive leak detection systems. For new basements, hydrostatic tests or negative-side injections are sometimes used to verify performance under pressure.

Recommended inspection routines

Inspect roof and deck membranes at least twice a year and after extreme weather. Look for blistering, ponding, discoloration, or punctures. For subterranean systems, inspect interior finishes and monitor humidity and staining patterns to spot potential migration paths. Document inspections and repairs for warranty purposes.

When failures are suspected, localized destructive testing and core sampling reveal whether water is passing through the membrane or through the concrete itself. This differentiation helps define repair strategy—surface repair or deeper remediation.

Repair strategies and when to rehabilitate

Minor breaches in surface membranes can often be patched by cutting back to sound material, priming, and re-coating or patching with compatible materials. Larger failures may require removal and replacement of the membrane plus corrective work on underlying concrete if it has been damaged by water or salts.

For integral systems, visible repair options are limited because the protection is embedded. Repair often focuses on addressing cracks, restoring cover to reinforcement, or installing surface protection where movement or concentrated leaks occur. In severe cases, applying a surface membrane over the integral-treated concrete provides a new external defense.

Environmental and sustainability considerations

Waterproofing choices have environmental implications. Some bituminous sheets and solvent-based coatings contain volatile organic compounds (VOCs) and require careful handling and disposal. Water-based membranes and crystalline admixtures tend to have lower VOC profiles. Longevity also influences sustainability—longer-life systems reduce material consumption and lifecycle impacts.

Recyclability and raw-material sourcing matter too. Polymer membranes often incorporate petrochemical derivatives, while cementitious systems lean more on mineral components. Life-cycle assessments that account for maintenance frequency, repair needs, and operational savings from reduced moisture-related damage give a clearer sustainability picture than simple first-cost comparisons.

Codes, standards and best-practice references

Citing standards helps align expectations. ASTM and ACI offer numerous test methods and guidelines relevant to waterproofing, from permeability tests (ASTM C1202) to membrane adhesion and resistance evaluations. Manufacturer test data and third-party evaluations should be used in conjunction with these standards to make informed choices.

Include performance criteria in specifications rather than prescribing a single product. Describe required test procedures, acceptance criteria, and mock-up approvals. This approach lets experienced contractors propose suitable products while holding them accountable to measurable performance.

Costs and life-cycle considerations

Initial material and labor costs are only part of the story. Consider the whole-life cost: frequency of repairs, ease of access for future maintenance, and consequences of failure. A system that is slightly more expensive upfront but significantly easier to inspect and repair may be more economical over 30 years.

Integral treatments typically add modest cost to the concrete mix but reduce long-term maintenance needs. Surface membranes can be inexpensive initially but may need replacement or repairs, especially where mechanical damage or UV exposure is significant. Always model scenarios for realistic maintenance intervals and repair costs when budgeting.

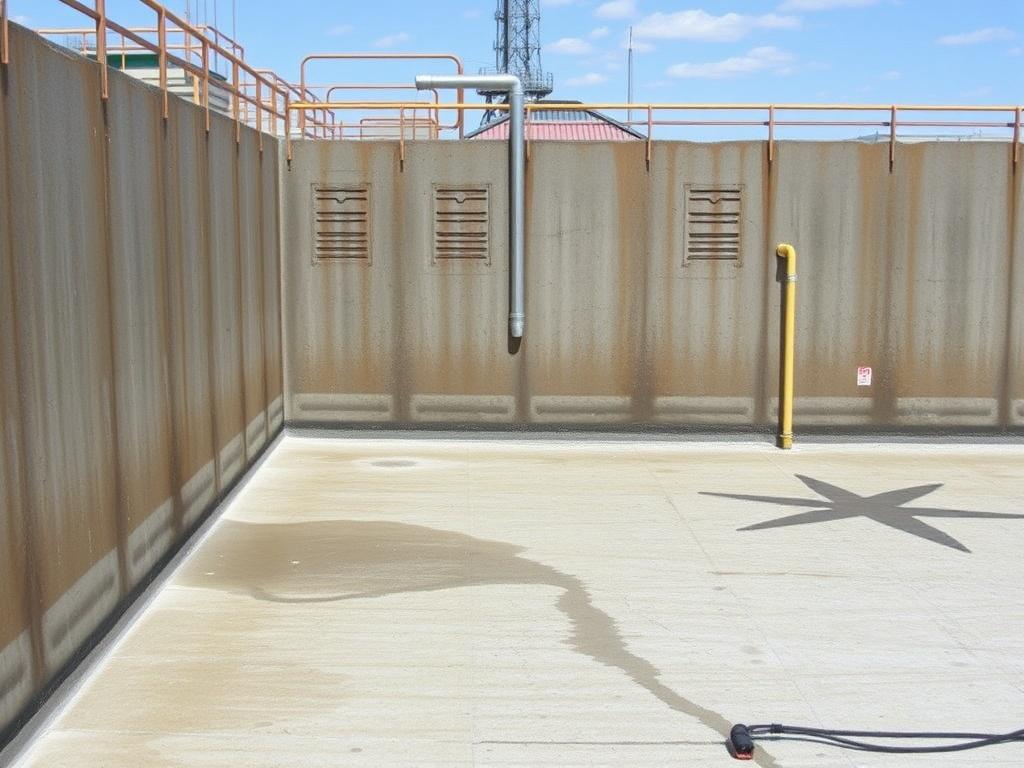

Common mistakes and how to avoid them

Several recurring errors lead to premature failures: improper substrate cleaning, incompatible primers and membranes, inadequate curing, ignoring manufacturer’s environmental limits during installation, and poor detailing at joints. These mistakes are avoidable with clear specifications, experienced installers, and adequate supervision.

Below are practical missteps to watch for during procurement and installation.

• Using a membrane that is incompatible with substrate or finishing materials, causing adhesion failure.
• Skipping surface repair of cracks or voids before membrane application.
• Applying liquid membranes in temperatures or humidity outside the manufacturer’s recommendations.
• Failing to protect membranes from construction traffic or landscaping activities after installation.

Practical installation tips from project experience

On projects where I’ve consulted, the simplest investments—cleaning the substrate thoroughly and requiring mock-ups—paid the largest dividends. When crews took the time to prepare a test area and let the owner see a finished detail, punch-list items dropped and warranty claims were rare. Examining a mock-up under the same exposure conditions as the final installation reveals many potential issues early.

Another recurring lesson: avoid surprises by specifying adhesives and sealants by performance criteria and compatibility rather than brand name alone. Contractors value flexibility, but ambiguous specs lead to substitutions that might not perform as intended under the local conditions.

Case studies: typical solutions for common problems

Basements under intermittent hydrostatic pressure often do well with a combined approach: integral crystalline admixtures in concrete, plus a positive-side surface membrane or drainage board on the exterior where accessible. The integral admixture reduces general permeability while the membrane handles concentrated water at joints and penetrations.

For rooftop decks with tile finishes, a fluid-applied elastomeric membrane covered by a mortar bed and tile is a common system. The membrane handles ponding and movement while the tiled surface provides UV protection. When installed carefully with proper slope and drainage, these systems perform for decades.

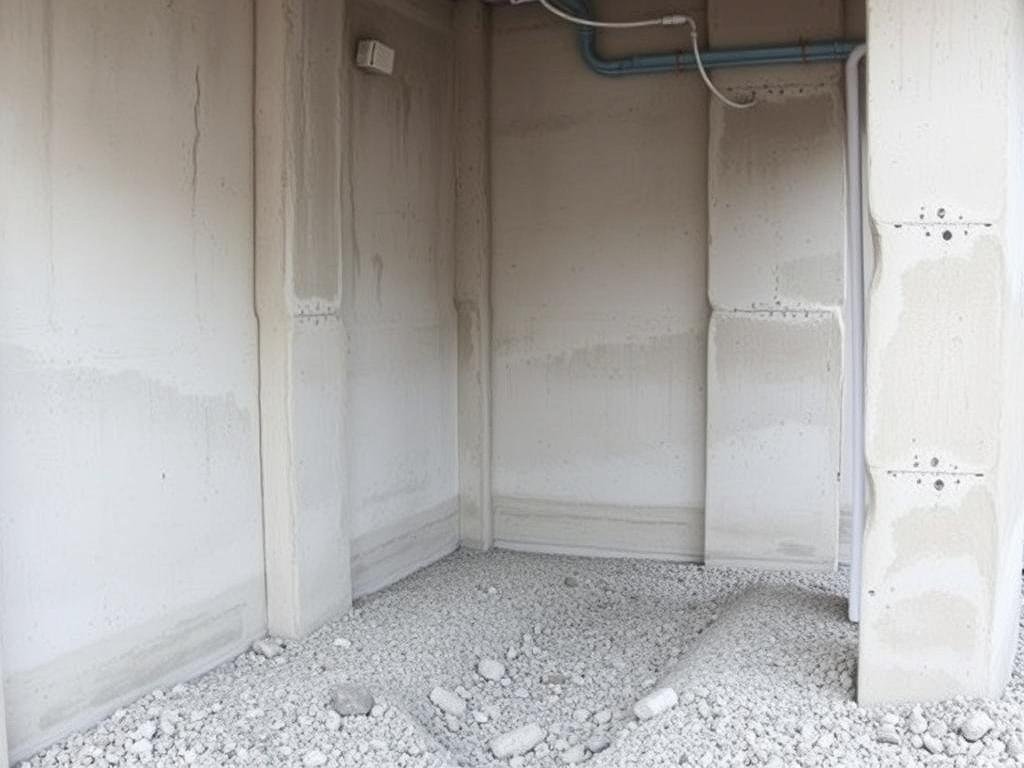

Testing methods to verify performance

Common tests include water ponding (to check for leaks), flood testing for basements, and adherence tests for membrane bonding. For permeability assessment, rapid chloride permeability (ASTM C1202) or water absorption tests give indications of concrete’s resistance to penetration. Non-destructive leak detection—electric field methods or IR thermography—can detect localized membrane breaches without destructive probing.

Post-installation testing should be planned into the contract and witnessed by the owner’s representative. A documented test regimen reduces disputes and provides baseline data for future inspections.

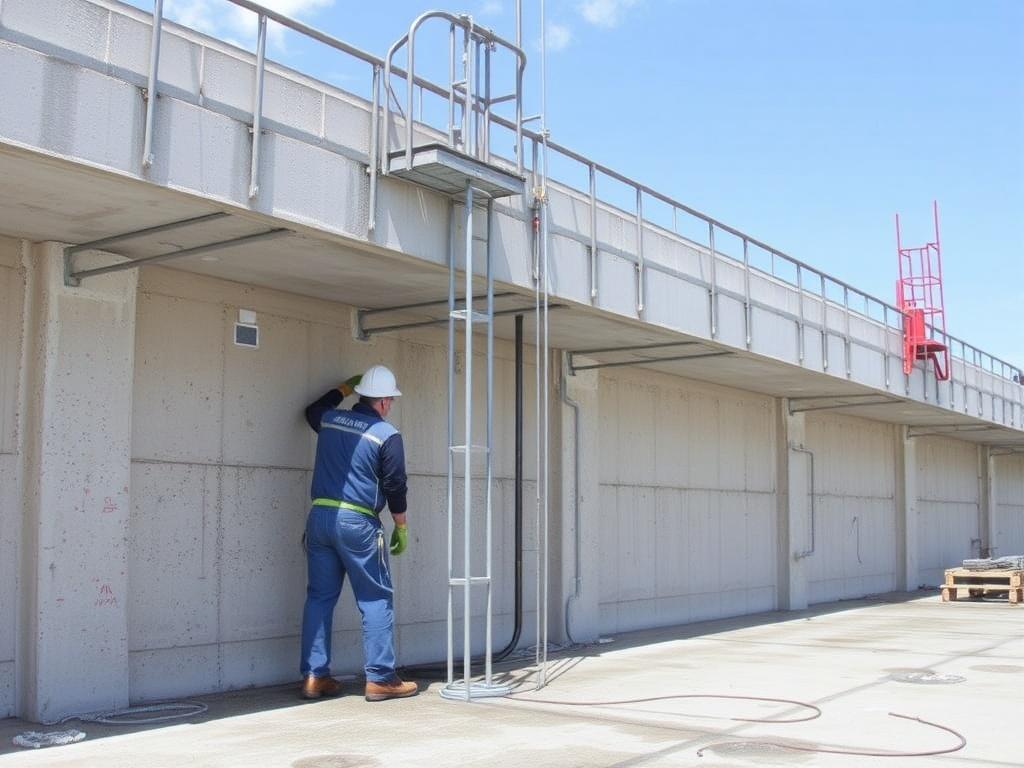

Working with contractors and specifying the scope

Successful projects align design, materials, and execution. Engage contractors early to confirm practical details and sequencing. Contractors can advise on logistics such as when to install membranes relative to backfilling, how to protect installed systems during follow-on trades, and what testing they prefer to demonstrate performance.

Write the specification to require manufacturer installation instructions be followed and to require contractor qualifications and references for similar projects. Include acceptable mock-ups and holdpoints for critical transitions; that small bit of friction during construction saves time and money in the long run.

When to call an expert

Complex exposures—tunnels, submerged structures, historic building restorations—benefit from early involvement of waterproofing specialists. They can run risk assessments, recommend redundancies, and design details that non-specialists might overlook. For high-value or high-consequence projects, the cost of specialist input is tiny compared with the cost of failure.

If you’re noticing recurring moisture problems despite a previous waterproofing effort, consult an independent diagnostician who can perform leak tracing and moisture mapping. Proper diagnosis steers you to the correct remedial strategy rather than wasting resources on ineffective repairs.

Final thoughts and practical checklist

Waterproofing concrete successfully is as much about detail, sequencing, and quality control as it is about product choice. Use integral treatments to make the concrete itself less permeable and surface-applied systems where detailing, joints, and penetrations demand a clear external barrier. A layered approach often yields the most reliable long-term performance.

Before you finalize a specification, run through this practical checklist: ensure appropriate admixture trials, require a substrate-cleaning regime, demand mock-ups for critical details, define acceptance testing, and specify maintenance and inspection intervals. Those steps will reduce surprises and keep water where it belongs—outside.
